Three decorative finishes
Dark walnut, light walnut and light oak grain finishes are illustrated in the brochure. Confirm finish samples and cleaning compatibility before specifying the interior.

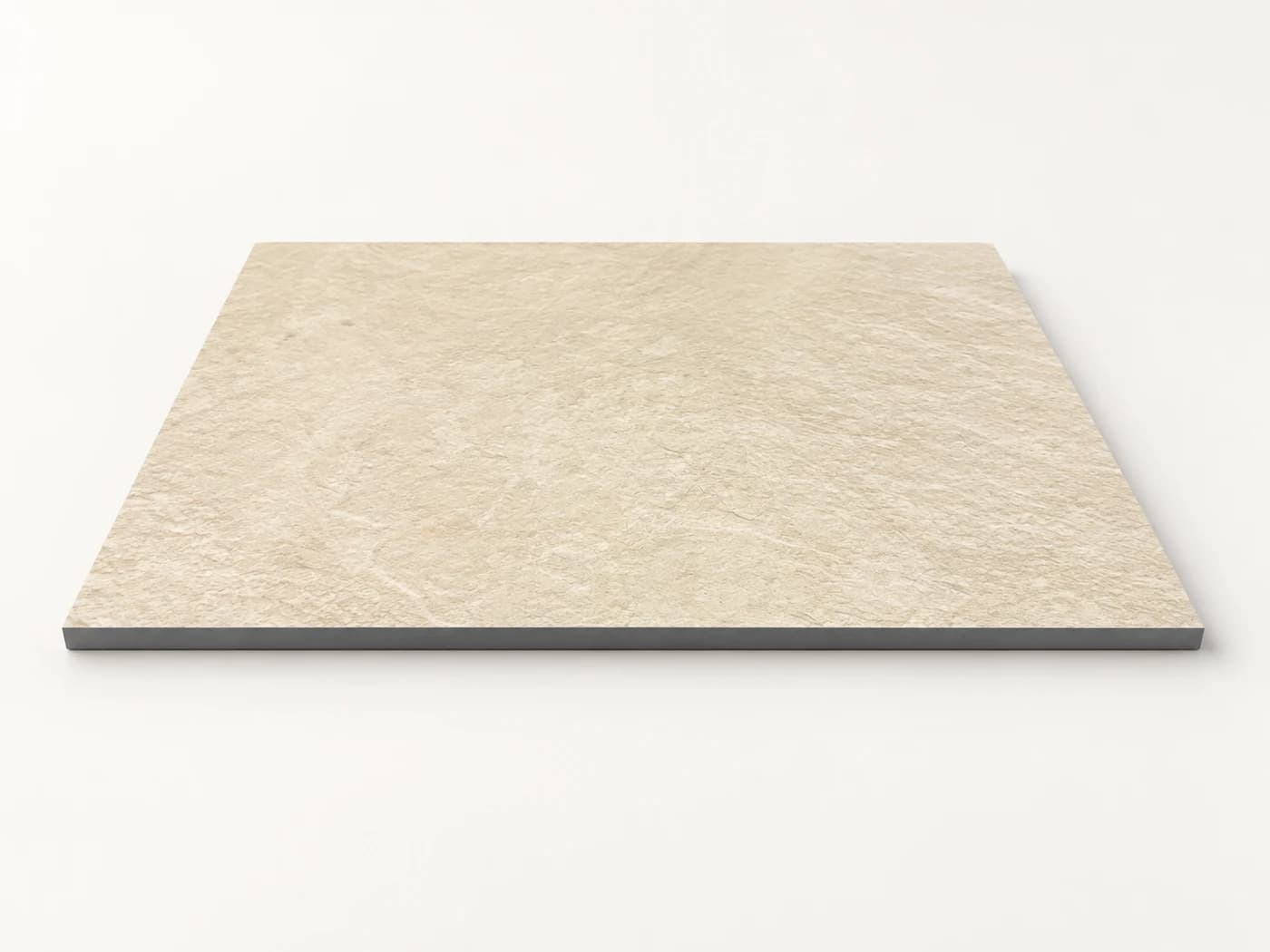

Rendering based on product referenceRADBAR / PANELS
Lead-free shielding panels
Rare-earth-based composite wall panels combining a shielding layer and decorative surface. Plan installation, supporting loads, joints and penetrations as one complete assembly.
Lead-free materialDecorative finishesBuilding integrationProduct specifications
- Models
- NFPb200-1 / NFPb200-2
- Panel size
- 2440 × 1220 mm
- Thicknesses
- 6 / 10 mm
- Listed lead equivalence
- 2 mmPb — confirm test conditions
- Listed areal weights
- 25 / 37 kg/m²
Source: manufacturer product literature linked above. Confirm current model, test conditions and supply specification for your order.
01 / PRODUCT INSIGHT
From material to application.
A rare-earth-based shielding composite combines flame-retardant polymer material with a decorative surface. The catalog presents a base-plus-panel construction with adhesive or hanging-buckle installation, making shielding part of the interior finish.
Integrated installation planning
The illustrated process uses a supporting frame, panel attachment and top fixing. The frame, fasteners and substrate must be designed for the actual panel loads and site conditions.
Continuous shielding at details
Plan corners, joints, door frames, service penetrations and access panels before cutting. The rating of one board does not define the shielding performance of the complete room.
02 / TECHNICAL DATA
Models, values and their conditions.
Transcribed from manufacturer literature, with source references and conditions kept alongside each table.
| Model | Size (mm) | Lead equivalence (mmPb) | Catalog kg/sheet | Areal weight (kg/m²) |
|---|---|---|---|---|
| NFPb200-1 | 2440 × 1220 × 6 | 2 | 77 | 25 |
| NFPb200-2 | 2440 × 1220 × 10 | 2 | 110 | 37 |
Sheet and areal weights are catalog nominal values; they do not reconcile exactly for every entry. Confirm actual shipment mass for handling and structural design. Beam conditions for the listed 2 mmPb require the corresponding test report.
Source: Radbar Wall Panel — Lead Free X-Ray Shielding Panel, page 103 / APPLICATIONS
Where it fits
- Medical imaging rooms and research laboratories requiring an engineered shielding enclosure.
- Industrial non-destructive testing enclosures; nuclear or radiotherapy uses require source-specific engineering assessment.
04 / SELECTION QUESTIONS
A closer look at your specification.
Does the brochure’s Class A statement cover the installed wall?
The brochure states Class A fire performance without a complete report in the supplied file. Confirm the test standard, report scope and installed assembly before using a fire classification in the project specification.
Can the catalog’s frame dimensions be used as a complete installation design?
The page-2 sketch is a reference sequence, including 40 × 60 mm tubes and illustrated spacing. It is not a site-specific structural or radiation-shielding design; obtain approved construction details.
SOURCE LITERATURE
View full PDFRadbar Wall Panel — Lead Free X-Ray Shielding Panel
Manufacturer literature · referenced pages 1–2
Selection notes explain the literature and do not replace model-specific instructions, test reports or project design.
